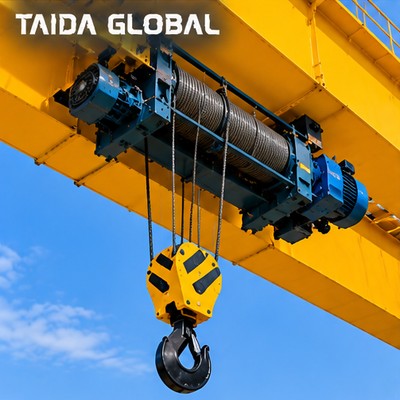

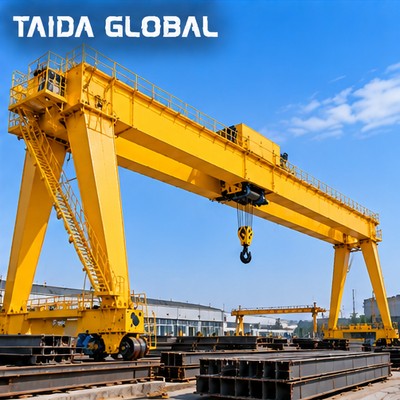

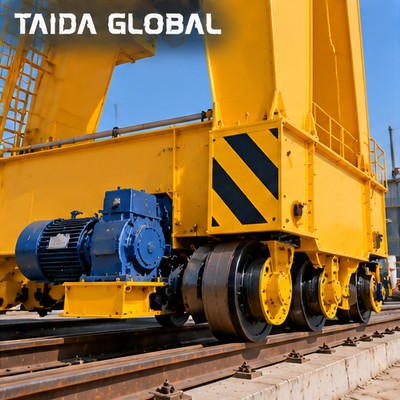

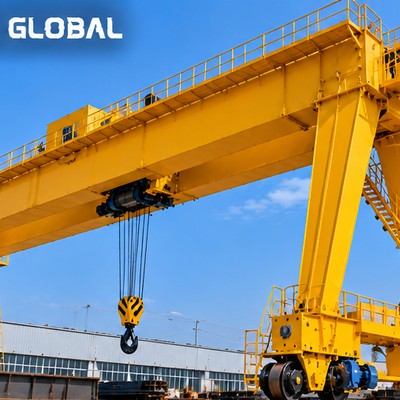

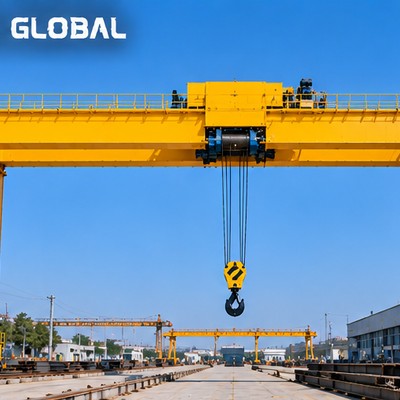

20 t × 30 m Double-Girder Gantry Crane

01 | KEY TECHNICAL ATTRIBUTES

1. Procurement configuration: 20 t × 30 m Double-Girder Gantry Crane.

2. Intended application: outdoor machinery loading on flatbed trucks.

3. Buyer target lifting capacity: 20 t (requested target; confirm official OEM rating).

4. Required crane span: 30 m (concept requirement; final design to be approved).

5. Equipment configuration: double-girder gantry.

6. Key function under review: high-lift trolley option.

7. Critical engineering interface: roadway crossing and truck clearance.

8. RFQ evidence: gantry support calculations; wind and storm anchoring; rail alignment; lifting arrangement.

9. All values in this listing are procurement planning data, NOT confirmed manufacturer specifications or stock availability.

02 | REGIONAL SHIPMENT & DELIVERY GUIDANCE

1. Production duration: to be confirmed in a written OEM quotation after drawing approval; no fixed one-month guarantee.

2. Export packing: sea-fastened gantry legs, main beams and machinery; on-site erection plan required.

3. China dispatch: candidate ports such as Shanghai or Ningbo may be evaluated after the factory location and cargo dimensions are known.

4. Region-specific planning items (not transit-time promises):

  - Southeast Asia: confirm vessel schedule, discharge port, import approvals and inland crane access.

  - East Asia: confirm carrier frequency, unloading equipment and cargo-length restrictions.

  - Middle East: confirm breakbulk/container options, customs permits and heat-protection packing.

  - Africa: confirm port capability, destination clearance and extended inland handling.

  - Europe: confirm conformity documentation, heavy-cargo route permits and site unloading.

  - Americas: confirm destination regulations, customs classification and oversized-cargo permits.

5. Obtain a freight quote with agreed Incoterms, carrier schedule, customs documents, destination port and inland unloading plan.

6. Contractual handover schedule depends on signed technical scope, FAT result, transport permits and customs clearance.

03 | CUSTOM OPTIONS & PROCUREMENT HIGHLIGHTS

1. Application fit: review outdoor machinery loading on flatbed trucks, site duty and interface drawings before selecting double-girder gantry.

2. Configurable scope: Select rail / rubber tyre design, hoist and travel speed, wind ratings and high-lift trolley option. Buyer priority: roadway crossing and truck clearance.

3. Design clarification: Rail and foundation engineering: travel envelope, wind duty and ground bearing.

4. Obtain supplier evidence: approved GA drawings, design calculations, manufacturing plan, certificates and operating manuals.

5. Include FAT / inspection checkpoints, packing checks, installation or commissioning scope and spare-parts support in the purchase contract.

6. TAIDA GLOBAL coordinates sourcing and verification; it does not claim to manufacture the equipment or hold these exact configurations in stock.

04 | FREQUENTLY ASKED QUESTIONS

Q1. Is the 20 t lifting target suitable for this application?

A1. Confirm gross lifted mass, dynamic factors, rigging mass and applicable duty class for outdoor machinery loading on flatbed trucks; the rating is a buyer target, not a certified offer.

Q2. Can the 30 m span fit the intended site?

A2. Approve site survey, runway alignment, free height and support reactions; the proposed geometry requires supplier drawings and structural review.

Q3. Which crane safety and control features should be specified?

A3. Agree limit switches, brakes, anti-collision needs and the project standard; for double-girder gantry, request hazard analysis where applicable.

Q4. How are transport and installation costs established?

A4. Quote packing dimensions, site access, freight, lifting/erection and Incoterms only after approved drawings and destination details.

Q5. Can the crane be configured for the operating duty?

A5. Request an engineered proposal for high-lift trolley option, verified duty cycle, environment and commissioning documents.
