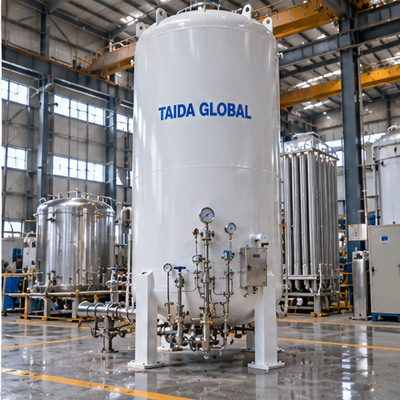

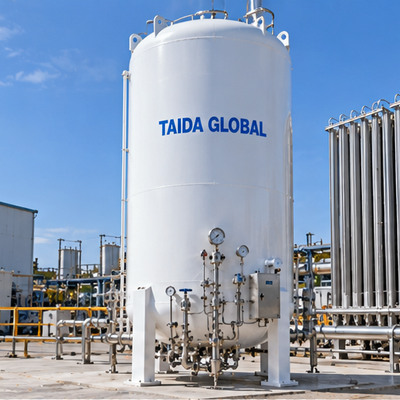

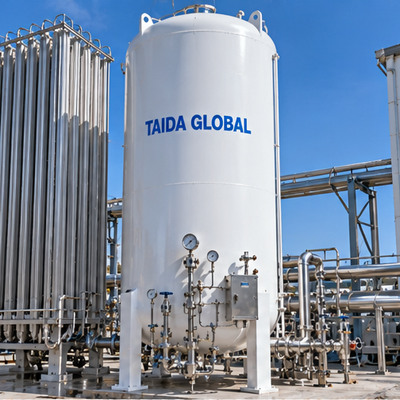

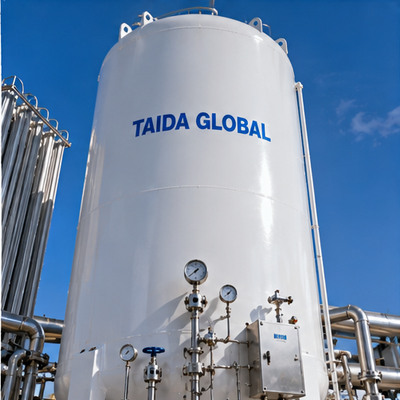

5 m³ Vertical Vacuum-Insulated Liquid Oxygen Storage Tank

01 | KEY TECHNICAL ATTRIBUTES

1. Procurement target: 5 m³ Vertical Vacuum-Insulated Liquid Oxygen Storage Tank — configuration proposed for hospital and industrial bulk oxygen storage.

2. Primary requested parameter: Nominal capacity target: 5 m³. This is a buyer-side target, not an OEM-verified rating.

3. Intended process medium: Liquid oxygen (LOX); the exact composition, design pressure, minimum/maximum temperature and phase conditions must be specified before design.

4. Main functional consideration: compact vertical layout with insulated cold-service storage.

5. Engineering verification: assess oxygen-clean wetted parts, venting and oxygen-compatible materials.

6. Acceptance basis: approved drawings, calculations, material certificates, weld/NDE inspection, pressure/leak tests and required authority inspections as applicable.

02 | REGIONAL SHIPMENT & DELIVERY GUIDANCE

1. Shipment preparation: Confirm tank overall dimensions, road permits and port lifting capacity. Large vessels may require break-bulk or project cargo.

2. Southeast Asia (Indonesia/Philippines/Thailand/Vietnam): confirm nearest receiving port, import approvals, onward road permits and unloading equipment.

3. East Asia (Japan/Korea): verify destination-specific pressure-equipment requirements, documentation language, inland route and commissioning scope.

4. Middle East / Africa: review site climate, customs rules, dangerous-goods controls, inspection on arrival and local lifting capacity.

5. Europe / Americas: confirm PED/ASME/local design code applicability, conformity evidence, freight mode and receiving infrastructure.

6. Delivery schedule: production, inspection, port departure, ocean transit and inland delivery must be quoted separately by an actual supplier; there is no assumed one-month build time or promised shipping window.

03 | CUSTOM OPTIONS & PROCUREMENT HIGHLIGHTS

1. Fit for purpose: use the compact vertical layout with insulated cold-service storage concept only after confirming operational demand at hospital and industrial bulk oxygen storage.

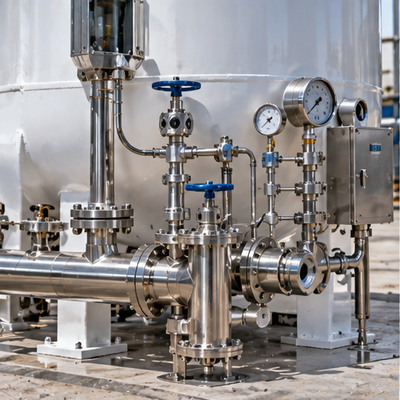

2. Customization: telemetry and a site-specific vaporizer connection; Review insulation method, inner-vessel materials, top/bottom withdrawal, ambient vaporizer interface, pressure-build/economizer circuits and monitoring.

3. Technical risk: oxygen-clean wetted parts, venting and oxygen-compatible materials. The design must be approved by qualified pressure-equipment engineers.

4. Compliance: For suitable static vacuum-insulated service, evaluate ISO 21009-1; alternative local codes and fluid-specific exclusions require review.

5. Supplier and quality review: verify OEM business registration, scope of accreditation where required, manufacturing history, material traceability, inspection and FAT/acceptance plan.

6. Commercial clarification: define EXW/FOB/CIF or other agreed Incoterms, exclusions, spare parts, warranty, technical documentation and responsibility for local installation.

04 | FREQUENTLY ASKED QUESTIONS

Q1. What must be confirmed before quoting the 5 m³ Vertical Vacuum-Insulated Liquid Oxygen Storage Tank?

A1. Confirm nominal capacity target: 5 m³, liquid oxygen (lox) properties, design pressure/temperature, site conditions and applicable local codes.

Q2. What is the most important application check for hospital and industrial bulk oxygen storage?

A2. The buyer and manufacturer should assess oxygen-clean wetted parts, venting and oxygen-compatible materials, record acceptance criteria and select protection measures.

Q3. Which compliance and inspection documents should be requested?

A3. Request the applicable design-code declaration, drawings, material traceability, welding/NDE records and test certificates appropriate to this project. For suitable static vacuum-insulated service, evaluate ISO 21009-1; alternative local codes and fluid-specific exclusions require review.

Q4. Which customization options are worth evaluating?

A4. Evaluate telemetry and a site-specific vaporizer connection; final options depend on engineering calculations, supplier capability and approval requirements.

Q5. How are production, freight and delivery dates confirmed?

A5. Production duration, port of loading, export packing, transport route, import permits and destination commissioning scope require a written OEM quotation; no fixed lead time is claimed.
