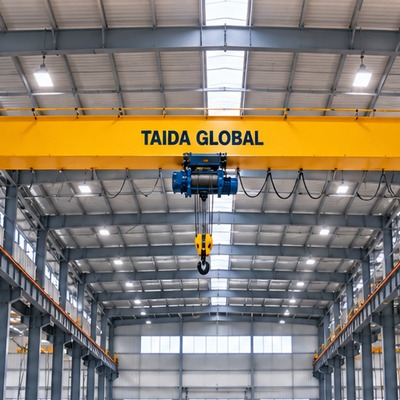

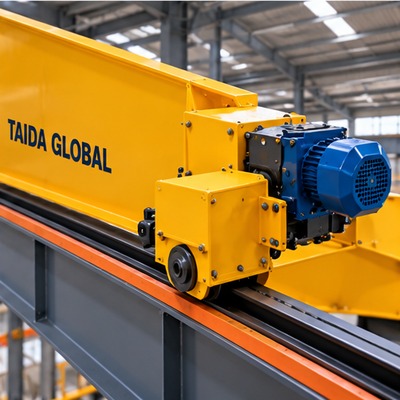

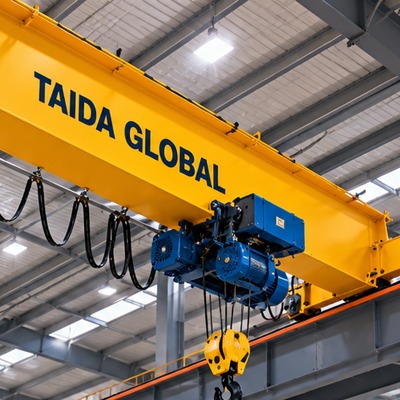

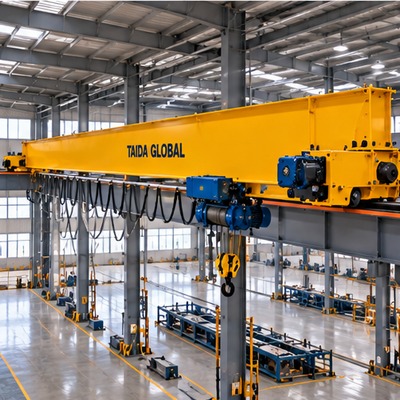

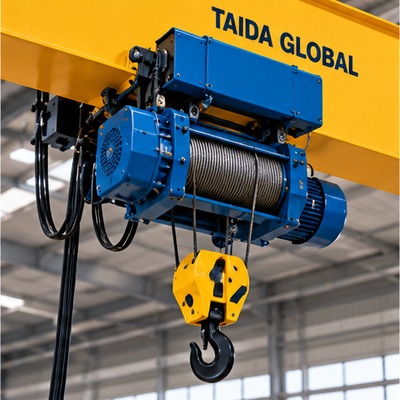

5 t × 19.5 m Single-Girder Overhead Crane

01 | KEY TECHNICAL ATTRIBUTES

1. Procurement configuration: 5 t × 19.5 m Single-Girder Overhead Crane.

2. Intended application: palletized machinery and equipment movement in a warehouse.

3. Buyer target lifting capacity: 5 t (requested target; confirm official OEM rating).

4. Required crane span: 19.5 m (concept requirement; final design to be approved).

5. Equipment configuration: single-girder top-running.

6. Key function under review: electric hoist with pendant or radio control.

7. Critical engineering interface: bay clearance and daily lift cycles.

8. RFQ evidence: approved general arrangement; wheel-load data; lifting duty class; FEM/ISO/ASME as contractually applicable.

9. All values in this listing are procurement planning data, NOT confirmed manufacturer specifications or stock availability.

02 | REGIONAL SHIPMENT & DELIVERY GUIDANCE

1. Production duration: to be confirmed in a written OEM quotation after drawing approval; no fixed one-month guarantee.

2. Export packing: fabrication split, sea-fastening for girders, trolley and controls; inspect before load-out.

3. China dispatch: candidate ports such as Shanghai or Ningbo may be evaluated after the factory location and cargo dimensions are known.

4. Region-specific planning items (not transit-time promises):

  - Southeast Asia: confirm vessel schedule, discharge port, import approvals and inland crane access.

  - East Asia: confirm carrier frequency, unloading equipment and cargo-length restrictions.

  - Middle East: confirm breakbulk/container options, customs permits and heat-protection packing.

  - Africa: confirm port capability, destination clearance and extended inland handling.

  - Europe: confirm conformity documentation, heavy-cargo route permits and site unloading.

  - Americas: confirm destination regulations, customs classification and oversized-cargo permits.

5. Obtain a freight quote with agreed Incoterms, carrier schedule, customs documents, destination port and inland unloading plan.

6. Contractual handover schedule depends on signed technical scope, FAT result, transport permits and customs clearance.

03 | CUSTOM OPTIONS & PROCUREMENT HIGHLIGHTS

1. Application fit: review palletized machinery and equipment movement in a warehouse, site duty and interface drawings before selecting single-girder top-running.

2. Configurable scope: Confirm hook approach, lifting height, end-carriage travel, anti-sway needs and selected electric hoist with pendant or radio control. Buyer priority: bay clearance and daily lift cycles.

3. Design clarification: Site engineering: bridge/runway capacity, hook height and wheel reactions.

4. Obtain supplier evidence: approved GA drawings, design calculations, manufacturing plan, certificates and operating manuals.

5. Include FAT / inspection checkpoints, packing checks, installation or commissioning scope and spare-parts support in the purchase contract.

6. TAIDA GLOBAL coordinates sourcing and verification; it does not claim to manufacture the equipment or hold these exact configurations in stock.

04 | FREQUENTLY ASKED QUESTIONS

Q1. Is the 5 t lifting target suitable for this application?

A1. Confirm gross lifted mass, dynamic factors, rigging mass and applicable duty class for palletized machinery and equipment movement in a warehouse; the rating is a buyer target, not a certified offer.

Q2. Can the 19.5 m span fit the intended site?

A2. Approve site survey, runway alignment, free height and support reactions; the proposed geometry requires supplier drawings and structural review.

Q3. Which crane safety and control features should be specified?

A3. Agree limit switches, brakes, anti-collision needs and the project standard; for single-girder top-running, request hazard analysis where applicable.

Q4. How are transport and installation costs established?

A4. Quote packing dimensions, site access, freight, lifting/erection and Incoterms only after approved drawings and destination details.

Q5. Can the crane be configured for the operating duty?

A5. Request an engineered proposal for electric hoist with pendant or radio control, verified duty cycle, environment and commissioning documents.
