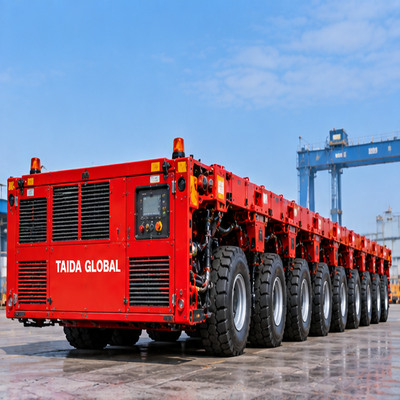

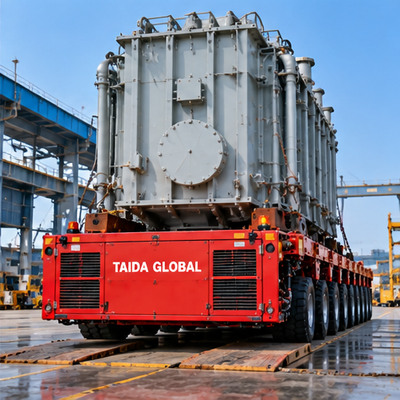

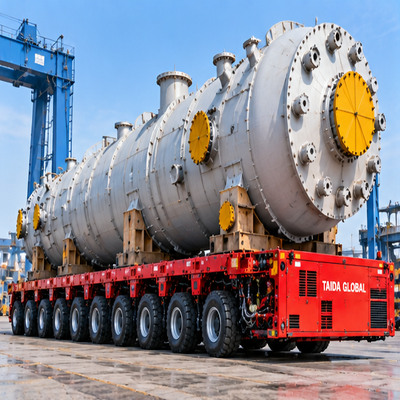

8-Axle-Line Self-Propelled Modular Transporter

01 | KEY TECHNICAL ATTRIBUTES

1. Procurement configuration: 8-Axle-Line Self-Propelled Modular Transporter.

2. Intended application: moving oversized fabrication blocks at shipyards.

3. Requested axle lines: 8 axle lines (requested target; confirm official OEM rating).

4. Key dimensional  handling requirement: modular deck (concept requirement; final design to be approved).

5. Equipment configuration: SPMT module.

6. Key function under review: hydraulic lift-and-travel.

7. Critical engineering interface: axle loads and deck deflection.

8. RFQ evidence: per-configuration engineering drawings; axle-load calculations; route survey and operating procedure.

9. All values in this listing are procurement planning data, NOT confirmed manufacturer specifications or stock availability.

02 | REGIONAL SHIPMENT & DELIVERY GUIDANCE

1. Production duration: to be confirmed in a written OEM quotation after drawing approval; no fixed one-month guarantee.

2. Export packing: modular elements and power packs packed separately per approved lift and transport method.

3. China dispatch: candidate ports such as Shanghai or Ningbo may be evaluated after the factory location and cargo dimensions are known.

4. Region-specific planning items (not transit-time promises):

  - Southeast Asia: confirm vessel schedule, discharge port, import approvals and inland crane access.

  - East Asia: confirm carrier frequency, unloading equipment and cargo-length restrictions.

  - Middle East: confirm breakbulkcontainer options, customs permits and heat-protection packing.

  - Africa: confirm port capability, destination clearance and extended inland handling.

  - Europe: confirm conformity documentation, heavy-cargo route permits and site unloading.

  - Americas: confirm destination regulations, customs classification and oversized-cargo permits.

5. Obtain a freight quote with agreed Incoterms, carrier schedule, customs documents, destination port and inland unloading plan.

6. Contractual handover schedule depends on signed technical scope, FAT result, transport permits and customs clearance.

03 | CUSTOM OPTIONS & PROCUREMENT HIGHLIGHTS

1. Application fit: review moving oversized fabrication blocks at shipyards, site duty and interface drawings before selecting SPMT module.

2. Configurable scope: Choose axle-line grouping, PPU, steering program, deck accessories and hydraulic lift-and-travel. Buyer priority: axle loads and deck deflection.

3. Design clarification: Transport engineering: axle loads, CG, steering envelopes, slope and route capacity.

4. Obtain supplier evidence: approved GA drawings, design calculations, manufacturing plan, certificates and operating manuals.

5. Include FAT  inspection checkpoints, packing checks, installation or commissioning scope and spare-parts support in the purchase contract.

6. TAIDA GLOBAL coordinates sourcing and verification; it does not claim to manufacture the equipment or hold these exact configurations in stock.

04 | FREQUENTLY ASKED QUESTIONS

Q1. Does 8 axle lines establish the transporter payload?

A1. No. Axle-line count describes configuration, not guaranteed payload. Obtain load charts considering module tare, axle limits and ground bearing.

Q2. Is the modular deck configuration workable on the site?

A2. Validate module interface, deck geometry, turning corridors and center-of-gravity for moving oversized fabrication blocks at shipyards before quotation.

Q3. What ground and route studies are required?

A3. Provide pavement and bridge capacity, grades, crossfalls, turning radius and route surveys for engineering review.

Q4. What hydraulics and steering details matter?

A4. Confirm suspension groups, load equalization, steering modes, power pack and synchronized control for SPMT module.

Q5. How is the equipment prepared for delivery?

A5. Supplier-specific module breakdown, PPU accessories, shipping fixtures and commissioning plan must be included in the contract.
