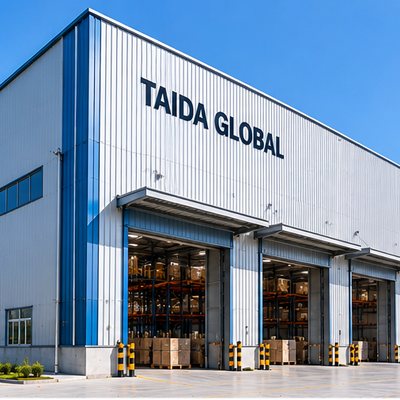

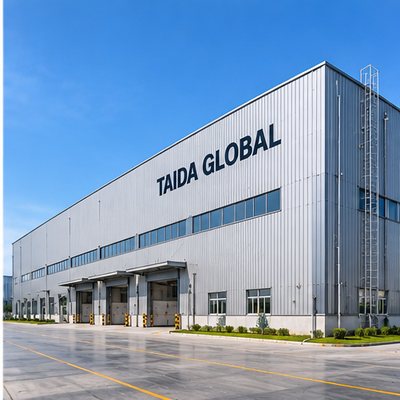

High-Rack Steel Storage Warehouse

01 | KEY TECHNICAL ATTRIBUTES

1. Procurement concept: High-Rack Steel Storage Warehouse, a proposed structural steel solution for racked spare parts and packaged goods.

2. Buyer reference A: Eave height target: 15 m. This is a target / design input, not a verified manufacturer specification.

3. Buyer reference B: Rack loads: owner specialist to confirm. Final dimensions, loads and grades require signed engineered drawings.

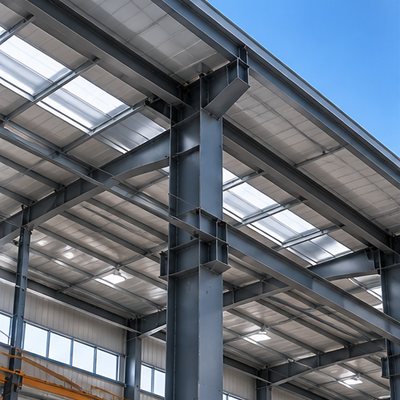

4. Structural approach: high-bay structure aligned with racking; package type: high-bay racked storage.

5. Critical engineering check: rack anchorage, slab deflection and fire protection.

6. RFQ input: confirm rack loads, fork truck routes, mezzanine and dock loads, roof trusses and slab interfaces. Also define safety egress and sprinklers.

7. Materials and connections: project structural grade, mill test certificates, welded/bolted joint schedule, tolerances, traceability and coating system per approved drawings.

8. Inspection: agree dimensional checks, welding procedure and personnel evidence, weld/NDT scope, coating thickness tests, marking and shop trial assembly where relevant.

9. Design responsibility: owner-appointed qualified structural engineer must establish loads, foundation/soil data, codes and final structural adequacy; TAIDA GLOBAL is a sourcing coordinator, not structural engineer of record.

10. All quantities shown are conceptual BUYER REQUEST TARGETS, not stock, declared load capacity, approved design, guaranteed building performance or certification.

02 | REGIONAL SHIPPING & DELIVERY GUIDANCE

1. Shipment is planned after approval of shop drawings, fabrication schedule and inspection/hold points for High-Rack Steel Storage Warehouse. No fixed production lead time is promised.

2. Steel items may ship as bundled profiles, crates, flat rack or breakbulk depending on segment length, mass, port equipment and charter availability; confirm container length and road clearances.

3. Packing requires item marks matched to the erection list, protective separators, protected thread faces, weatherproof document packs and corrosion controls for sea transit.

4. Port of export (e.g., Shanghai / Ningbo) is illustrative only; final OEM origin, Incoterms®, transit route and costs must be agreed in writing.

5. Region-specific project checks (not transit-time commitments):

  - Southeast Asia: Check tropical rain, typhoon zones where relevant, coastal corrosion, port crane lifts, inland access and local structural approval.

  - East Asia: Review earthquake, snow and wind design basis as applicable; check marine packaging, lifting allowances and detailed material traceability.

  - Middle East: Confirm design wind and thermal movement, UV exposure, sand abrasion, coating specification and project port / inland heavy haulage.

  - Africa: Review project-specific wind, local access roads, port limits, crane availability, shipment splitting, import permits and owner site security.

  - Europe: Confirm national building regulations, applicable structural design standards, approved documentation and whether CPR / EN 1090 product requirements apply.

  - Americas: Confirm national/local steel building or bridge codes, wind and seismic actions, material equivalence and special trucking / erection permits.

6. Verify destination HS classification, country construction-material rules, permits, heavy-load escorts, unloading cranes, site storage and erection contractor responsibilities.

7. Agreed milestones should cover design freeze, factory inspection, packing release, customs clearance, arrival inspection and punch-list closure.

03 | CUSTOM OPTIONS & PROCUREMENT HIGHLIGHTS

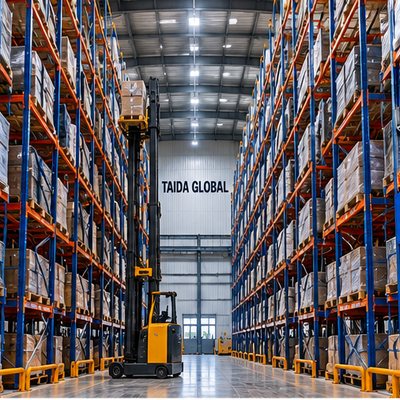

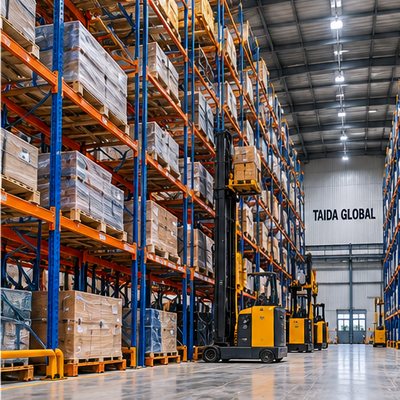

1. Application: high-bay racked storage for racked spare parts and packaged goods; do not finalize a product offer without an approved load-path design.

2. Proposed structural advantage: high-bay structure aligned with racking, subject to calculations, fabrication capability and erection planning.

3. Customization discussion: rack aisle lighting, roof insulation and mezzanine allowance; ask the shortlisted fabricator to list exclusions and priced options.

4. Design target checks: Eave height target: 15 m and Rack loads: owner specialist to confirm. Request site survey, structural model, connection drawings, material take-off and foundation interfaces.

5. Critical project issue: rack anchorage, slab deflection and fire protection; also plan temperature/moisture enclosure.

6. Quality package: qualified welding procedures/personnel where required, material traceability, bolt grades, dimensional records, NDT reports and protective treatment inspections.

7. Compare bidders on engineered suitability, fabrication QA, transportable module sizes, shop assembly, change control, warranties and erection documentation.

8. TAIDA GLOBAL supports sourcing, technical coordination and inspection logistics; no promise of owned factory, stock, fixed price, approval or structural compliance is implied.

04 | FREQUENTLY ASKED QUESTIONS

Q1. Can the High-Rack Steel Storage Warehouse be used for racked spare parts and packaged goods?

A1. It is a concept for high-bay racked storage. The owner’s structural engineer must check project loads, ground/footing conditions, dimensions, fire and local building rules before approving a specific design.

Q2. Are eave height target: 15 m and rack loads: owner specialist to confirm confirmed manufacturer ratings?

A2. No. They are RFQ targets or design questions only; final span, loading, dimensions, material and joints must be substantiated by stamped/approved design documents and a fabricator quote.

Q3. What should be checked before the order is placed?

A3. Review rack anchorage, slab deflection and fire protection; verify fabrication drawings, welding/bolting plan, erection method, tolerances and required jurisdictional inspection.

Q4. Can buyers request rack aisle lighting, roof insulation and mezzanine allowance?

A4. Potentially. Such options require engineering review, compatible member design, quantity take-off and written supplier acceptance; no feature is guaranteed in the concept.

Q5. What documentation is needed for an accurate project quotation and delivery plan?

A5. Provide location, structural drawings, applicable design code, structural loading, foundation survey, target completion date, drawings/BOM, coating environment, site access, unloading plan, Incoterms and inspection requirements.
