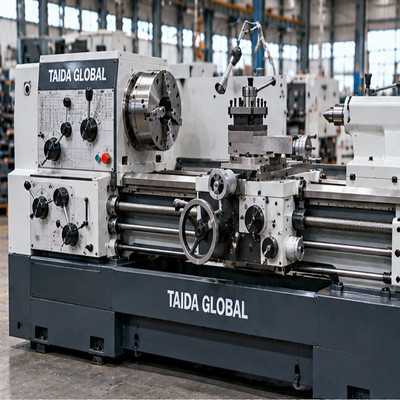

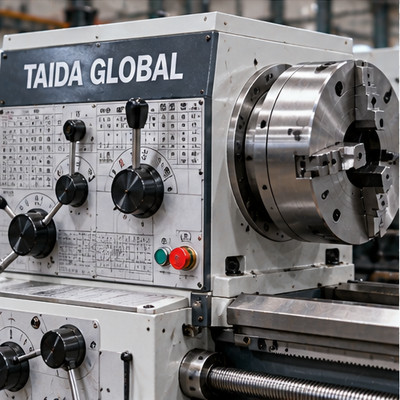

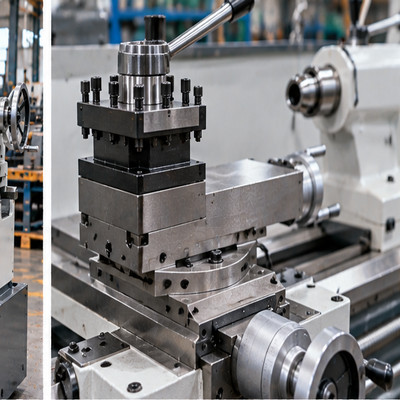

Precision Conventional Toolroom Lathe

01 | KEY TECHNICAL ATTRIBUTES

1. Procurement concept: Precision Conventional Toolroom Lathe; suitable for review in toolmaking and one-off shaft repairs.

2. Target / reference requirement A: Swing over bed target: 360 mm. This is not a manufacturer-certified specification.

3. Target / reference requirement B: Between centers target: 1,000 mm. Final allowable values are OEM-dependent.

4. Functional focus: manual fine-feed turning and threading; machining process: toolroom turning.

5. Key engineering checkpoint: feed gearbox and spindle concentricity.

6. RFQ verification: request OEM drawings and inspect swing/turning diameter, workpiece mass, chuck/table size, travel, alignment and operator guarding.

7. Interface assessment: lathe bed / vertical table arrangement; check tool clearance, base/foundation loads, maintenance area, voltage/frequency and local guarding.

8. Acceptance scope: request dimensional / sample workpiece tests, FAT checklist, inspection reports, controller documentation and signed OEM specification.

9. All numerical values are BUYER REQUEST TARGETS, not verified OEM ratings, stock claims, throughput guarantees or certified tolerances.

02 | REGIONAL SHIPMENT & DELIVERY GUIDANCE

1. Build duration, origin and shipment window: obtain a written manufacturer quotation after confirmed drawings; no one-month or fixed port-to-port lead-time guarantee.

2. Transport: confirm net/gross weight, machine dimensions, permitted lifting points, bed or column restraint, dry packing, corrosion protection and transit insurance.

3. Dispatch options: ports such as Shanghai or Ningbo are possible only if commercially feasible for the selected OEM; confirm factory location and route first.

4. Market-specific coordination requirements (not transit-time promises):

  - Southeast Asia: Confirm export packing and destination port, import duty classification, buyer unloading access and inland delivery responsibilities.

  - East Asia: Confirm carrier schedules, anti-rust packaging, port handling arrangements and in-country power supply compatibility.

  - Middle East: Review heat and dust protection, electrical specifications, inland delivery restrictions and customs documentation.

  - Africa: Review destination port capacity, inland heavy-load handling, spare-parts availability and customs-clearing support.

  - Europe: Check applicable EU/UK machinery requirements and documentation, local electrical standards and lifting/installation compliance.

  - Americas: Confirm country-specific electrical requirements, machine import rules, applicable safety approvals and last-mile unloading permits.

5. Quote freight under an agreed Incoterms® rule and specify installation, unloading, customs, offloading cranes and local electrical/guarding checks.

6. Final delivery and acceptance depend on OEM tests, customs, vessel schedules, site preparation and contractual milestones.

03 | CUSTOM OPTIONS & PROCUREMENT HIGHLIGHTS

1. Application fit: use Precision Conventional Toolroom Lathe for evaluation of toolroom turning in toolmaking and one-off shaft repairs; review drawings and planned cycle time first.

2. Engineering options to quote: digital readout and taper turning attachment. Availability and final scope depend on the chosen manufacturer.

3. Sourcing advantage to assess: manual fine-feed turning and threading, provided OEM trials and inspection substantiate performance.

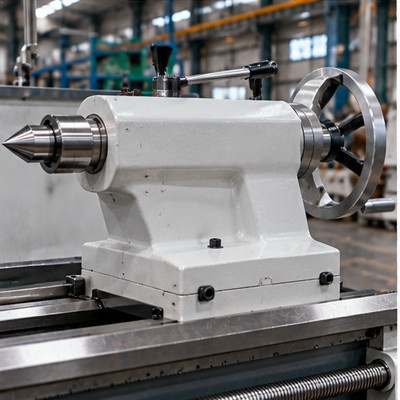

4. Equipment fit verification: Confirm maximum rotating diameter, tailstock/ram clearances, foundation and lifting envelope.

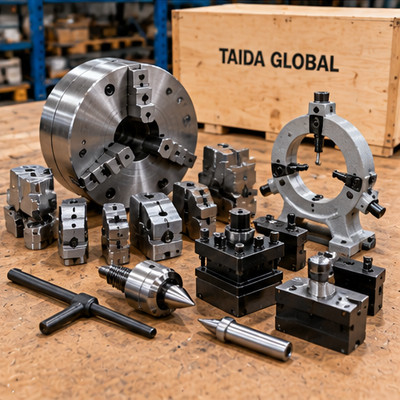

5. Purchase specifications should include swing over bed target: 360 mm; between centers target: 1,000 mm, plus coolant, chip handling, tooling, chuck/fixture requirements and electrical load.

6. OEM acceptance should address feed gearbox and spindle concentricity, application samples, measurement equipment, safety documentation and service / spares terms.

7. TAIDA GLOBAL coordinates sourcing, technical clarifications and supplier quality checks; it does NOT claim to be the equipment manufacturer or to hold listed configurations in stock.

04 | FREQUENTLY ASKED QUESTIONS

Q1. Is the Precision Conventional Toolroom Lathe suitable for toolmaking and one-off shaft repairs?

A1. Match the workpiece material, drawing tolerances, batch size and setup plan for toolroom turning; then compare an OEM process trial and actual machine envelope.

Q2. Are these technical parameters guaranteed by TAIDA GLOBAL?

A2. No. “Swing over bed target: 360 mm” and “Between centers target: 1,000 mm” are buyer-side reference targets only; request signed OEM drawings, a machine specification sheet and acceptance results.

Q3. How should performance and safety be verified?

A3. Review feed gearbox and spindle concentricity; request process-specific cutting tests and applicable safety documents (e.g., ISO 23125 for applicable turning machines, subject to scope and local rules). A cited standard is not proof of certification.

Q4. Can the manual fine-feed turning and threading be customized?

A4. Possibly, subject to the selected manufacturer’s engineering approval, quotation, machine compatibility and the purchaser’s final drawings.

Q5. What should buyers provide for an accurate quotation and delivery plan?

A5. Share workpiece drawings, material/heat treatment, annual volume, power frequency/voltage, destination country, delivery terms, site layout and required inspection/commissioning scope.
