Six Vertical Cryogenic Storage Tanks Delivered to Indonesia
cryogenic liquid storage tank were delivered by TAIDA GLOBAL on August 6, 2026, to Surabaya, East Java, Indonesia.
The equipment was prepared for an industrial gas distribution project and configured for the storage of liquid nitrogen. The vertical tank design was selected to reduce the required installation footprint while providing sufficient storage capacity for continuous industrial gas supply.
Before shipment, the tank bodies, weld seams, piping connections, valves, safety devices, lifting points, surface condition, and vacuum insulation systems were inspected. Non-destructive testing records and equipment documentation were also reviewed before loading.
Due to the dimensions and center of gravity of the vertical tanks, the loading plan included dedicated transport supports, lifting-point confirmation, protective measures for valves and pipelines, and reinforced securing arrangements. These measures helped reduce movement and potential damage during inland and sea transportation.
Main Specifications

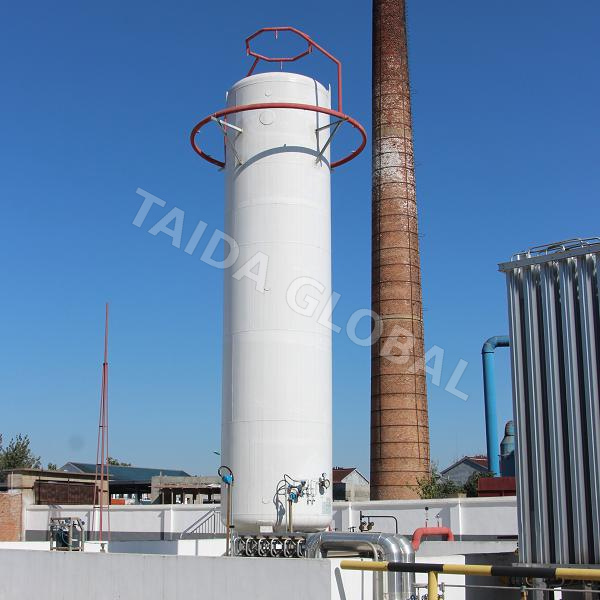

Product type: Vertical cryogenic liquid storage tank
Tank capacity: 5–250 m³
Stored medium: LN₂; LNG, LO₂, LAr, and LCO₂ configurations are also available
Working pressure: 0.8–2.1 MPa
Minimum design metal temperature: -196°C / -40°C
Insulation type: Vacuum powder insulation or high-vacuum multilayer insulation
Main materials: S30408, 16MnDR, and Q345R
Non-destructive testing ratio: 100%
Strength after strain strengthening: ≥737 MPa
Fatigue resistance: ≥50,000 cycles
Vacuum interlayer leakage rate: ≤1 × 10⁻⁸ Pa·m³/s
Sealed vacuum level: ≤0.1 Pa
Vacuum interlayer service life: ≥5 years
These technical values are based on the cryogenic liquid storage tank specifications in the uploaded product presentation.
Vertical cryogenic storage tanks are suitable for industrial gas stations, LNG facilities, manufacturing plants, food-processing facilities, medical gas systems, and other projects requiring stable low-temperature liquid storage.
The tank capacity, working pressure, stored medium, piping arrangement, valve configuration, and installation layout can be adjusted according to the customer’s operating requirements and local project conditions.
TAIDA GLOBAL supports Indonesian customers with equipment selection, technical confirmation, production coordination, quality inspection, export documentation, loading supervision, and delivery to the destination port.
